ZB-C系列加強型熔體泵主要用于聚合物流層中的中高粘度介質的平穩增壓輸送。加熱方式主要為電加熱。適用于PS, PP, PET, PVC, PC, PMMA, PA等工藝中。

　　技術參數

　　泵體: 高溫工具鋼，不銹鋼

　　齒輪: M2鋼,其他材料可指定。

　　滑動軸承: 高溫工具鋼，不銹鋼。

　　軸封: 雙端面螺旋密封

　　加熱系統 : 電加熱

　　規格/流量范圍: 從0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev

　　操作參數

　　粘度: ≤40000 Pas

　　溫度: ≤400℃

　　清洗溫度: ≤450℃

　　進口壓力: 高可達12MPa

　　高壓差: 可達25MPa

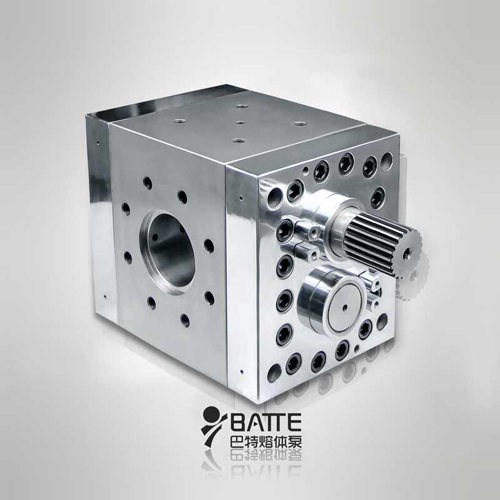

　　ZB-C Series Reinforced Melt Pump:

　　ZB-C series reinforced melt pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts electrical heating, and applies to PS, PP, PET, PVC, PC, PMMA, PA , etc.

　　Technical Parameter

　　Material for Melt Pump Body: High Temperature Tool Steel or Stainless Steel

　　Material for Gear: M2 Steel (Optional)

　　Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel

　　Shaft Sealing: Double Spiral Sealing

　　Heating System: Electrical Heating

　　Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev

　　Operating Parameter

　　Viscosity: ≤40000 Pas

　　Working Temperature: ≤400℃

　　Cleaning Temperature: ≤450℃

　　Inlet Pressure: ≤12MPa

　　Differential Pressure: ≤25Mpa
